[mozzius]

Summary:

Fixes #59549.

On iOS, a View nested in a Text is placed below the text baseline, while Android puts its bottom exactly on the baseline. _measureTextStorage: puts the attachment's bottom at the bottom of its glyph rect plus font.descender, where font is the font on the attachment's own run. That's only the baseline in a narrow case:

• React Native never gives the attachment's run a font, so NSTextStorage fills in its default, 12pt Helvetica (descender −2.76), whatever the surrounding text is.
• A lineHeight taller than the font raises the glyphs by (lineHeight - font.lineHeight) / 2 (RCTApplyBaselineOffset). The line bottom plus a descender doesn't include that.
• With mixed font sizes on a line, the line's descent comes from its largest font.

So the view sits |line descender| + baseline offset - 2.76 below the baseline: 0.86pt for 15pt system text, 3.91pt with lineHeight: 24, and 14.15pt for 24pt text with lineHeight: 36 at the first accessibility text size. The current formula came in with #53341 in 0.82, to fix #53092; on 0.81 the same screen puts the view on the baseline in all but the #53092 case.

This places the attachment on the baseline TextKit actually laid its line out with: the line fragment's origin plus the attachment glyph's location within it. That includes the baseline offset and the line's largest font, and it's the baseline onTextLayout reports for each line. It also fixes the #53092 case, where the view is taller than the line's ascent.

Compared with the open PRs for this:

• fix(ios): align inline views with inherited fonts and line heights #58967 gives the attachment's run the text's font and subtracts the baseline offset. That gets single-font lines right, but in the repro it leaves the mixed-size line 2.17pt low (3.88pt at Accessibility Medium).
• Support inline views in Text with lineHeight (#59420) #59420 subtracts the baseline offset behind fixTextInlineViewLineHeight, but keeps the run's font.descender. Going by its diff, the |descender| - 2.76 error would remain (0.86pt for 15pt text).

Changelog:

[IOS] [FIXED] - Views nested in Text sit on the text baseline instead of below it

Test Plan:

Reproducer: https://github.com/mozzius/inline-view-baseline-repro (RN 0.88.0, with this change as a patch behind a runtime stock/fixed switch). Each row is a Text with a nested blue View; the red hairline is the line's baseline from onTextLayout.

View bottom minus baseline, in points (positive is below), on an iPhone 17 Pro simulator (iOS 26.5):

Sample	Stock	Stock, Accessibility Medium	This PR (both sizes)
15 / no lineHeight	+0.67	+3.67	0
15 / 15	+1.00	+3.67	0
15 / 20	+2.00	+5.67	0
15 / 24	+4.00	+9.00	0
24 / no lineHeight	+3.00	+7.67	0
24 / 28	+3.00	+7.67	0
24 / 36	+6.67	+14.33	0
The #53092 case (14 bold / 16.8, 54×20 view)	+0.67	+3.33	0
15pt text with a nested 24pt word	+3.00	+7.67	0
Wrapped 15 / 24, view mid-paragraph	+4.00	+9.00	0

The letters sit exactly on the hairline in every screenshot. The repro's README has the logs, the formula-vs-measurement tables, and the 0.81.6 and Android comparisons.

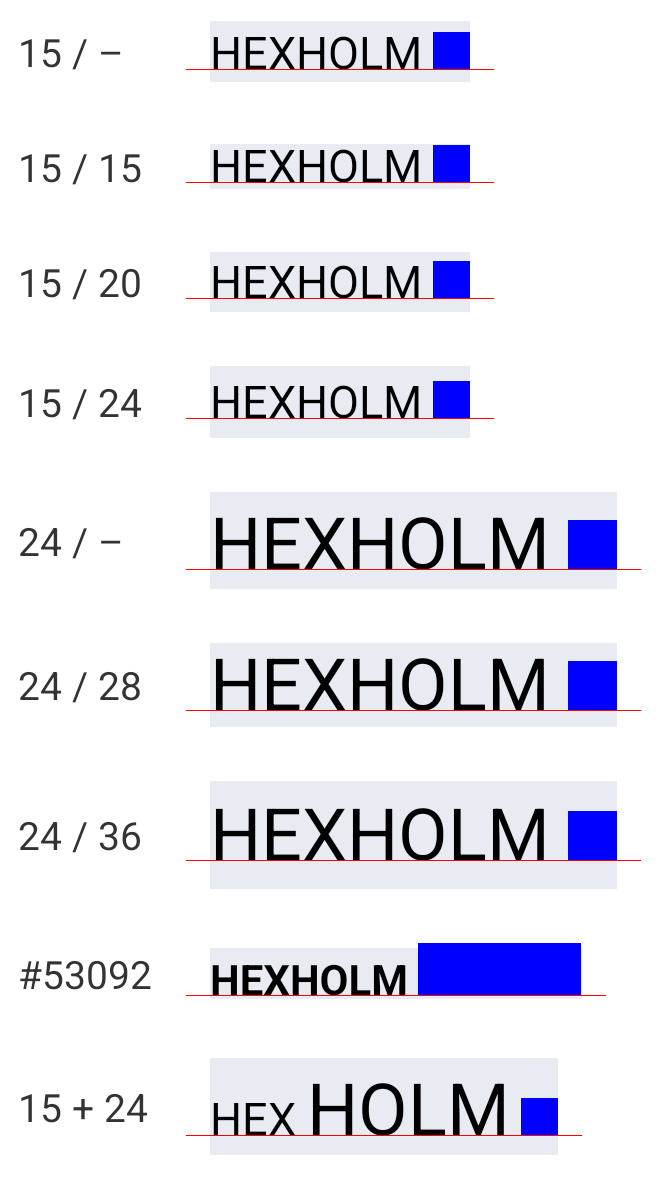

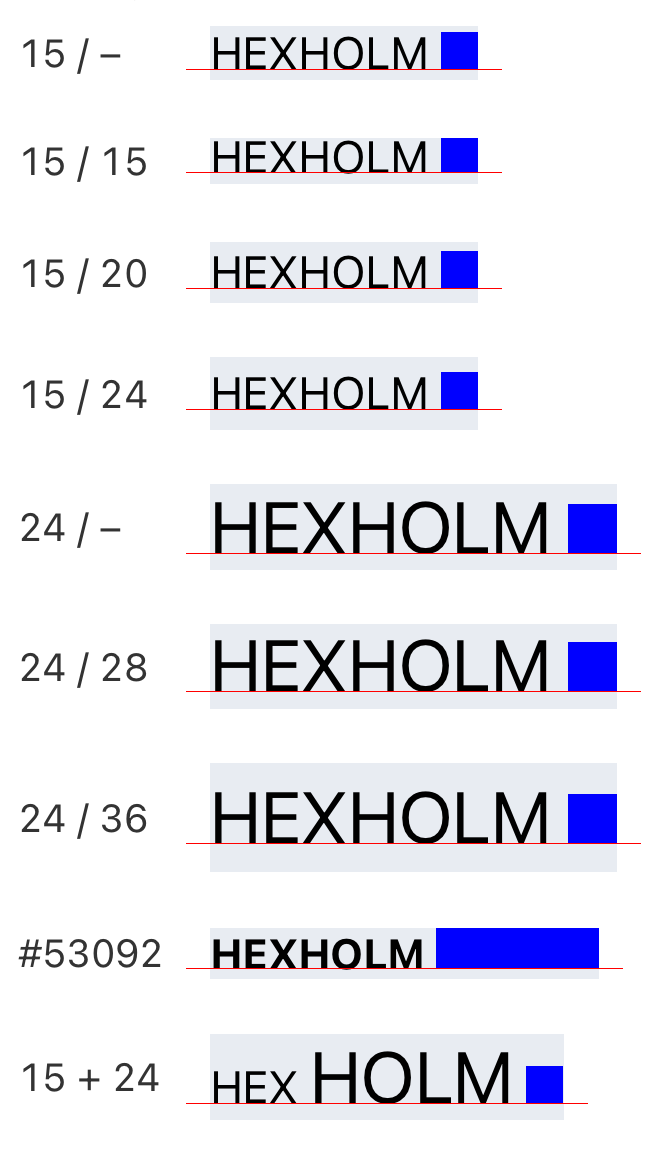

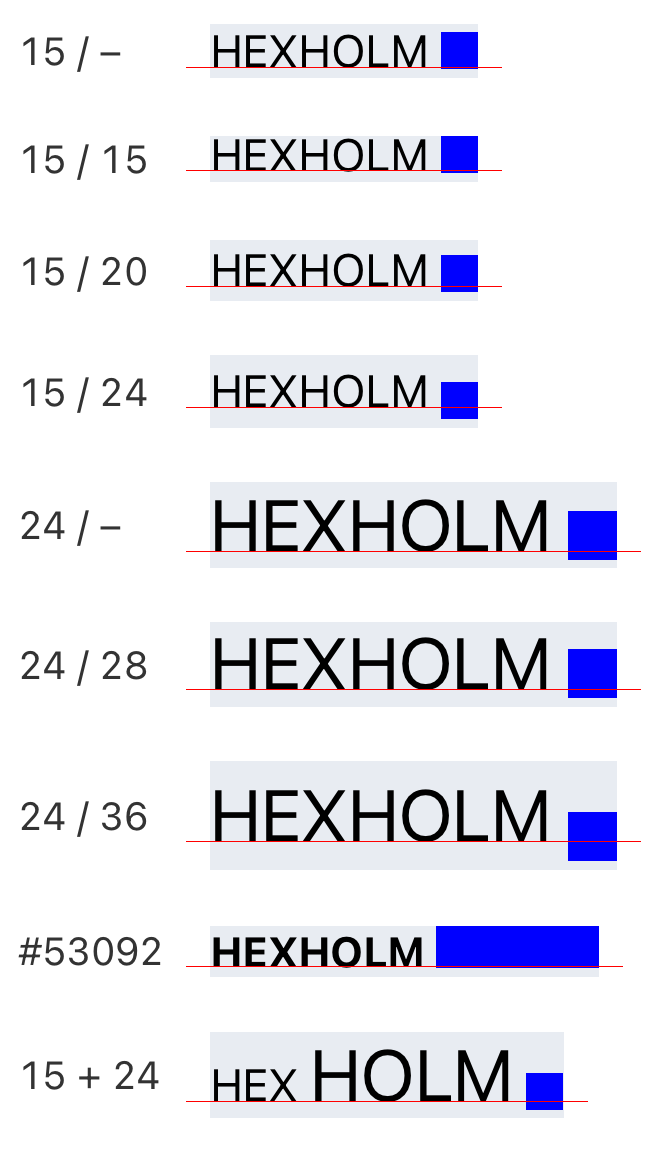

Stock	This PR	Android

We also ship this as a patch in the Bluesky app (RN 0.88), where it moved verification badges inside display names from 2.2pt below centre (5–7pt at the accessibility text sizes) to within 0.2pt (bluesky-social/social-app#12229).

🤖 Generated with Claude Code

[github-actions]

Visual regression

1 visual difference(s) at aae21afeeb89. Visual differences need maintainer approval. Review the report, then apply visual-change-approved.

android: no capture

ios scroll-view/horizontal-scroll-to/end: Changed, 69504 px (18.123%)

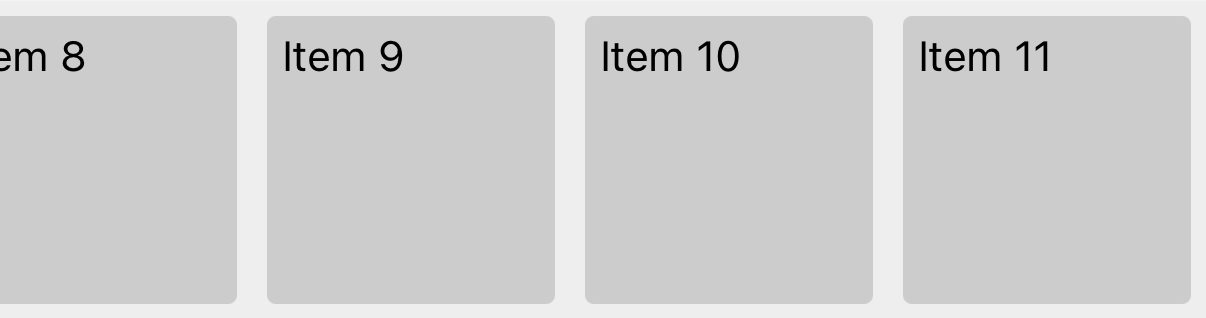

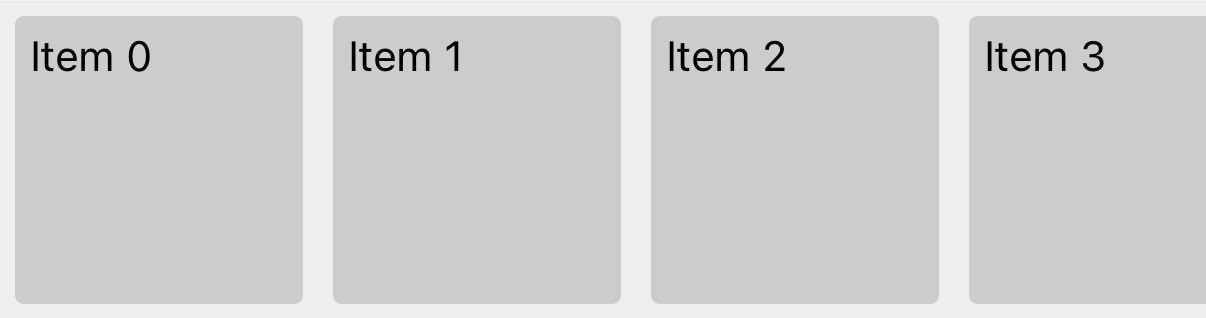

Expected and Captured

Expected	Captured

[mozzius]

I am fairly certain the visual regression test is a flake, but I'll try and confirm locally
