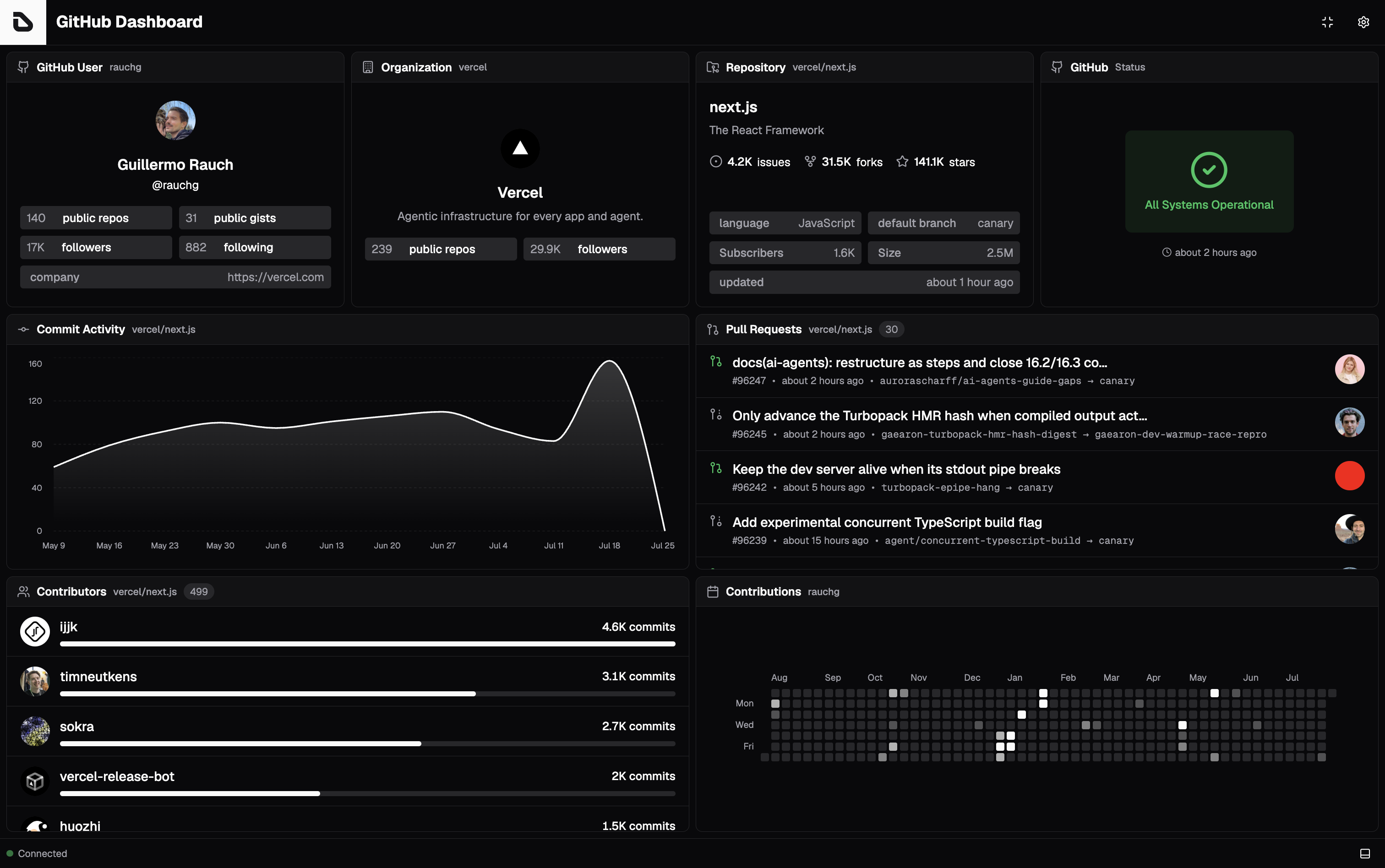

`@getdashfy/ext-github`

GitHub extension for Dashfy - Display GitHub data with beautiful widgets and charts.

This extension provides widgets to visualize GitHub repositories, users, organizations, pull requests, branches, contributions, and more.

Features

📊 Repository stats: Display repository information, stars, forks, issues, and activity
👥 User & organization badges: Show user and organization profiles
🔀 Pull requests & branches: Monitor open PRs and active branches
📈 Charts & analytics: Visualize commit activity, traffic views, and clones
👨‍💻 Contributors: Display top contributors with statistics
🗓️ Contribution heatmap: GitHub-style contribution calendar (Gitmap)
🟢 GitHub status: Monitor GitHub's system status
⚡ Real-time updates: Automatic data refresh via WebSocket subscriptions
🎨 Theme support: Works with all Dashfy themes (light/dark mode)

Installation

Install with your favorite package manager:

`npm`

npm install @getdashfy/ext-github

`pnpm`

pnpm add @getdashfy/ext-github

`yarn`

yarn add @getdashfy/ext-github

`bun`

bun add @getdashfy/ext-github

Quick start

1. Server setup

Register the GitHub API client in your Dashfy server (dashfy.server.ts):

import { Dashfy } from '@getdashfy/server'
import { createGitHubClient } from '@getdashfy/ext-github/client'

// Create a new Dashfy server instance
const dashfy = new Dashfy()

// Load dashboard configuration
await dashfy.configureFromFile('./dashfy.config.yml')

// Register GitHub API
// Get your token at: https://github.com/settings/tokens
// Set it with: export GITHUB_TOKEN=ghp_xxxxxxxxxxxxxxxxxxxxxxxxxxxxx in .env file
dashfy.registerApi(
  'github',
  createGitHubClient({
    token: process.env.GITHUB_TOKEN!, // Optional but recommended
  }),
)

// Start server
await dashfy.start()

2. Client setup

Register GitHub widgets in your React application (App.tsx):

import { WidgetRegistry } from '@getdashfy/ui'
import {
  Branches,
  CommitActivityLine,
  ContributorsStats,
  Gitmap,
  OrgBadge,
  PullRequests,
  RepoBadge,
  Status,
  TrafficClonesHistogram,
  TrafficViewsHistogram,
  UserBadge,
} from '@getdashfy/ext-github'

// Register GitHub extension
WidgetRegistry.addExtension('github', {
  Branches,
  CommitActivityLine,
  ContributorsStats,
  Gitmap,
  OrgBadge,
  PullRequests,
  RepoBadge,
  Status,
  TrafficClonesHistogram,
  TrafficViewsHistogram,
  UserBadge,
})

3. Dashboard configuration

Add GitHub widgets to your dashboard configuration (dashfy.config.yml):

dashboards:
  - title: GitHub Dashboard
    columns: 3
    rows: 2
    widgets:
      - extension: github
        widget: RepoBadge
        repository: react/react
        x: 0
        y: 0
        columns: 1
        rows: 1

      - extension: github
        widget: PullRequests
        repository: vercel/next.js
        state: open
        x: 1
        y: 0
        columns: 2
        rows: 1

GitHub API configuration

Authentication

While authentication is optional, it's highly recommended to provide a GitHub personal access token to:

Access private repositories
Increase API rate limits (5,000 requests/hour vs 60 requests/hour)
Access traffic data (requires push access)

Creating a personal access token

Go to GitHub Settings → Tokens
Click "Generate new token (classic)"
Select scopes based on your needs:
- public_repo - Access public repositories
- repo - Access private repositories
- read:org - Read organization data
Copy the generated token

Configuration options

createGitHubClient({
  // GitHub API base URL (useful for GitHub Enterprise)
  baseUrl: 'https://api.github.com', // default

  // Personal access token for authentication
  token: process.env.GITHUB_TOKEN!,

  // Request timeout in milliseconds
  timeout: 10_000, // default
})

Environment variables

You can use environment variables for configuration:

GITHUB_TOKEN=ghp_your_token_here

createGitHubClient({
  token: process.env.GITHUB_TOKEN!,
})

GitHub enterprise

To use with GitHub Enterprise, set the baseUrl:

createGitHubClient({
  baseUrl: 'https://github.company.com/api/v3',
  token: process.env.GITHUB_ENTERPRISE_TOKEN!,
})

API endpoints

createGitHubClient registers the endpoints below. Widgets subscribe to them through the endpoint parameter, and you can call any of them from your own custom widgets.

Endpoint	Parameters	Returns
`user`	`user`	User profile
`organization`	`organization`	Organization profile
`repository`	`repository`	Repository details and stats
`branches`	`repository`, `perPage`	Branches sorted by most recent commit
`pullRequests`	`repository`, `state`	Pull requests filtered by state
`issues`	`repository`, `state`	Issues filtered by state
`contributorsStats`	`repository`	Contributors with commit counts
`commitActivity`	`repository`	Weekly commit totals for the last 52 weeks
`trafficViews`	`repository`	Views for the last 14 days (needs push access)
`trafficClones`	`repository`	Clones for the last 14 days (needs push access)
`status`	-	GitHub platform status
`contributions`	`user`	Contribution calendar data

issues has no built-in widget yet — it is available for custom widgets.

Available widgets

Badges

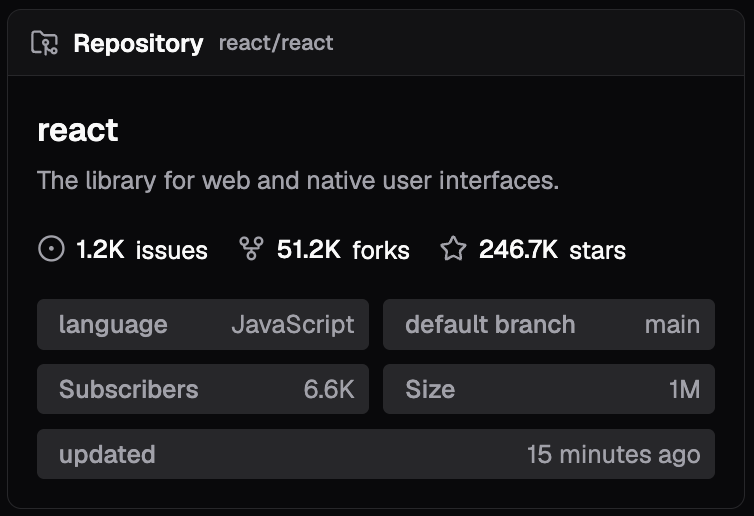

`RepoBadge`

Display repository information with stats (stars, forks, issues).

Parameters:

Parameter	Type	Required	Default	Description
`repository`	string	yes	-	Repository in format "owner/repo"
`title`	string	no	"Repository"	Custom widget title
`api`	string	no	"github"	API subscription ID
`endpoint`	string	no	"repository"	API endpoint to call

Example:

- extension: github
  widget: RepoBadge
  repository: react/react
  title: React Repository
  columns: 1
  rows: 1

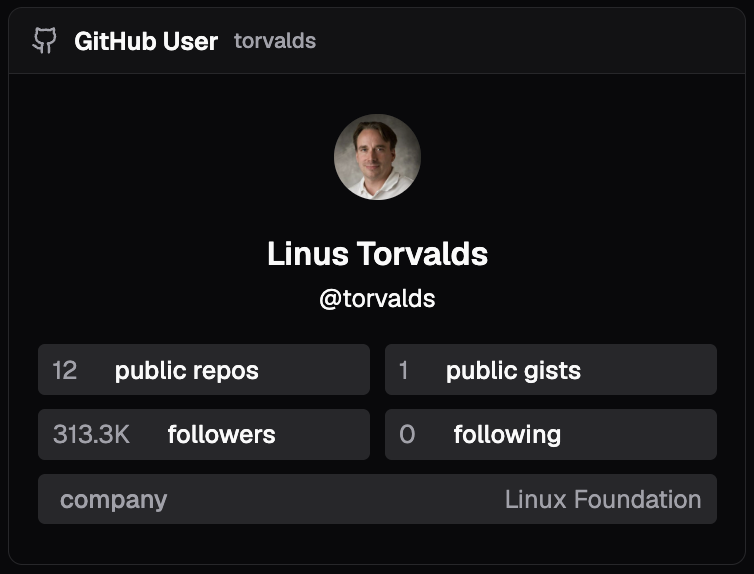

`UserBadge`

Display GitHub user profile information.

Parameters:

Parameter	Type	Required	Default	Description
`user`	string	yes	-	GitHub username
`title`	string	no	"GitHub User"	Custom widget title
`api`	string	no	"github"	API subscription ID
`endpoint`	string	no	"user"	API endpoint to call

Example:

- extension: github
  widget: UserBadge
  user: torvalds
  columns: 1
  rows: 1

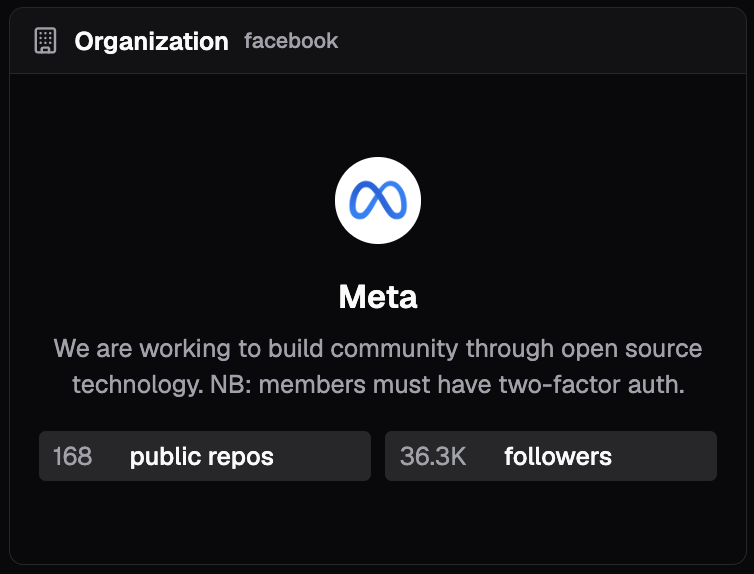

`OrgBadge`

Display GitHub organization information.

Parameters:

Parameter	Type	Required	Default	Description
`organization`	string	yes	-	Organization name
`title`	string	no	"Organization"	Custom widget title
`api`	string	no	"github"	API subscription ID
`endpoint`	string	no	"organization"	API endpoint to call

Example:

- extension: github
  widget: OrgBadge
  organization: facebook
  columns: 1
  rows: 1

Repository data

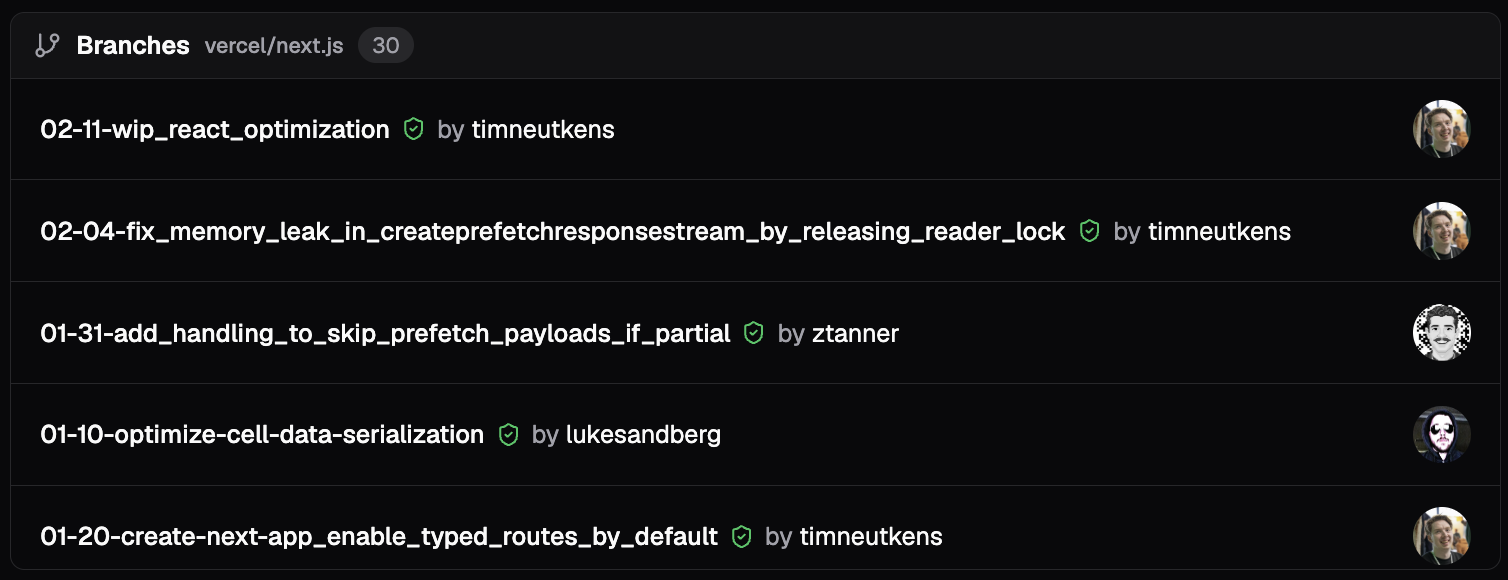

`Branches`

Display repository branches with commit authors and dates.

Parameters:

Parameter	Type	Required	Default	Description
`repository`	string	yes	-	Repository in format "owner/repo"
`perPage`	number	no	30	Number of branches to fetch
`title`	string	no	"Branches"	Custom widget title
`api`	string	no	"github"	API subscription ID
`endpoint`	string	no	"branches"	API endpoint to call

Example:

- extension: github
  widget: Branches
  repository: vercel/next.js
  columns: 2
  rows: 1

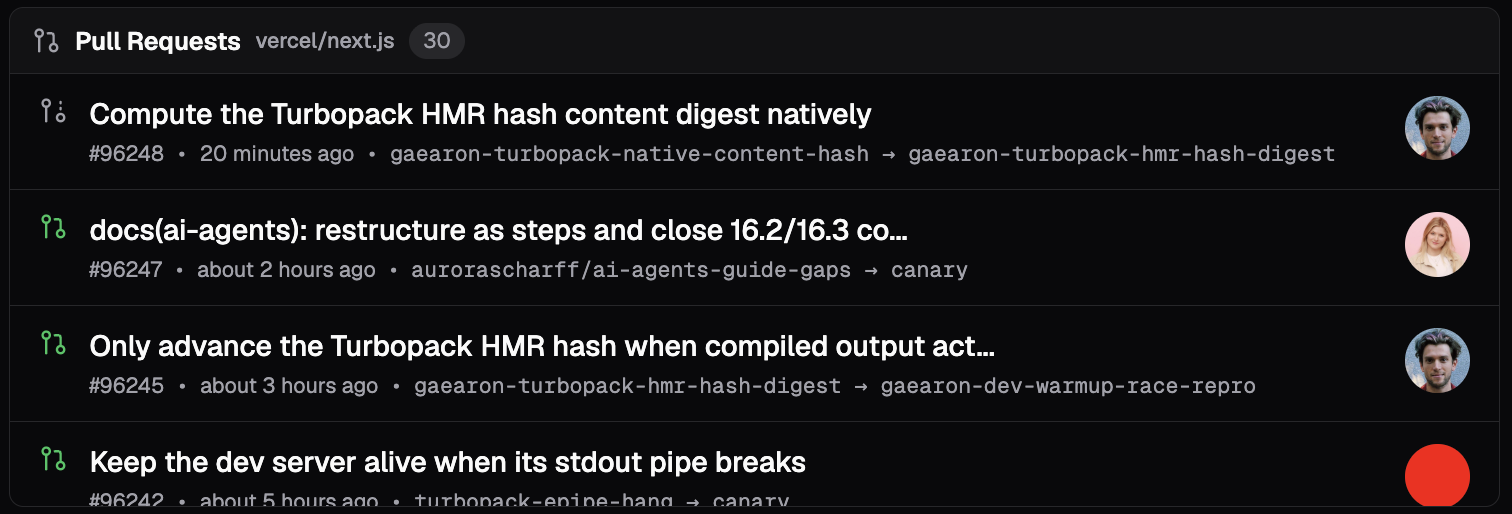

`PullRequests`

Display repository pull requests with authors and status.

Parameters:

Parameter	Type	Required	Default	Description
`repository`	string	yes	-	Repository in format "owner/repo"
`state`	"open" \| "closed" \| "all"	no	"open"	Pull request state filter
`title`	string	no	"Pull Requests"	Custom widget title
`api`	string	no	"github"	API subscription ID
`endpoint`	string	no	"pullRequests"	API endpoint to call

Example:

- extension: github
  widget: PullRequests
  repository: react/react
  state: open
  columns: 2
  rows: 1

Charts & Analytics

Each chart ships in three flavours. The Line and Histogram widgets are thin wrappers that preset the chart style, while the base component accepts a type of "area" or "bar":

Base component	Area variant	Bar variant
`CommitActivityChart`	`CommitActivityLine`	`CommitActivityHistogram`
`TrafficViewsChart`	`TrafficViewsLine`	`TrafficViewsHistogram`
`TrafficClonesChart`	`TrafficClonesLine`	`TrafficClonesHistogram`

All three accept the same parameters, so the tables below apply to every variant.

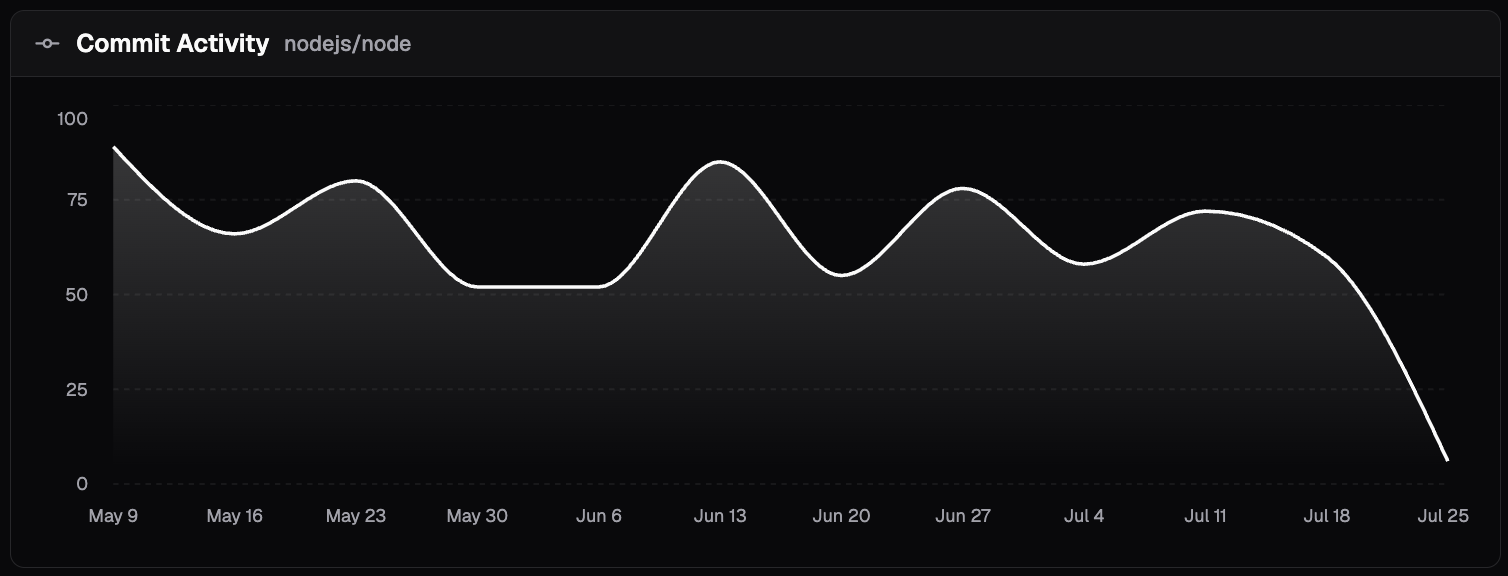

`CommitActivityLine`

Display commit activity over the last year as an area chart.

Parameters:

Parameter	Type	Required	Default	Description
`repository`	string	yes	-	Repository in format "owner/repo"
`title`	string	no	"Commit Activity"	Custom widget title
`api`	string	no	"github"	API subscription ID
`endpoint`	string	no	"commitActivity"	API endpoint to call

Example:

- extension: github
  widget: CommitActivityLine
  repository: nodejs/node
  columns: 2
  rows: 1

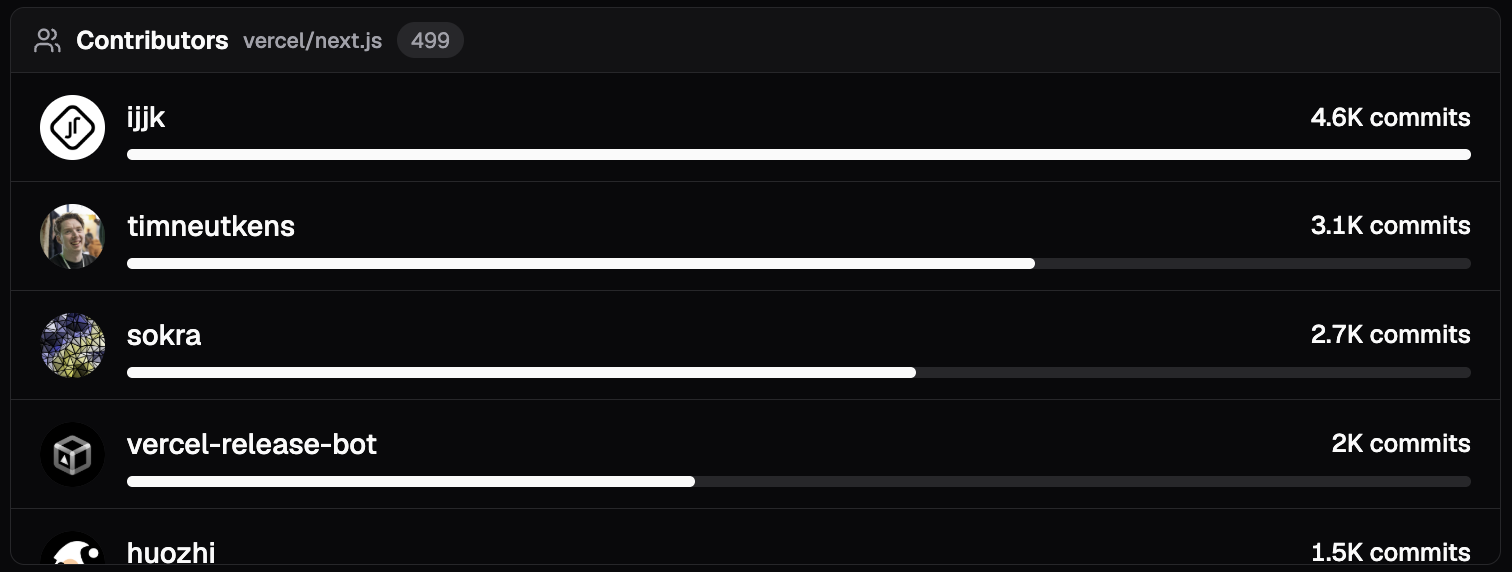

`ContributorsStats`

Display top contributors with commit statistics.

Parameters:

Parameter	Type	Required	Default	Description
`repository`	string	yes	-	Repository in format "owner/repo"
`title`	string	no	"Contributors"	Custom widget title
`api`	string	no	"github"	API subscription ID
`endpoint`	string	no	"contributorsStats"	API endpoint to call

Example:

- extension: github
  widget: ContributorsStats
  repository: vercel/next.js
  columns: 2
  rows: 1

`TrafficViewsHistogram`

Display repository traffic views over the last 14 days as a bar chart (requires push access).

Parameters:

Parameter	Type	Required	Default	Description
`repository`	string	yes	-	Repository in format "owner/repo"
`title`	string	no	"Visitors"	Custom widget title
`api`	string	no	"github"	API subscription ID
`endpoint`	string	no	"trafficViews"	API endpoint to call

Example:

- extension: github
  widget: TrafficViewsHistogram
  repository: myorg/myrepo
  columns: 2
  rows: 1

`TrafficClonesHistogram`

Display repository traffic clones over the last 14 days as a bar chart (requires push access).

Parameters:

Parameter	Type	Required	Default	Description
`repository`	string	yes	-	Repository in format "owner/repo"
`title`	string	no	"Clones"	Custom widget title
`api`	string	no	"github"	API subscription ID
`endpoint`	string	no	"trafficClones"	API endpoint to call

Example:

- extension: github
  widget: TrafficClonesHistogram
  repository: myorg/myrepo
  columns: 2
  rows: 1

User data

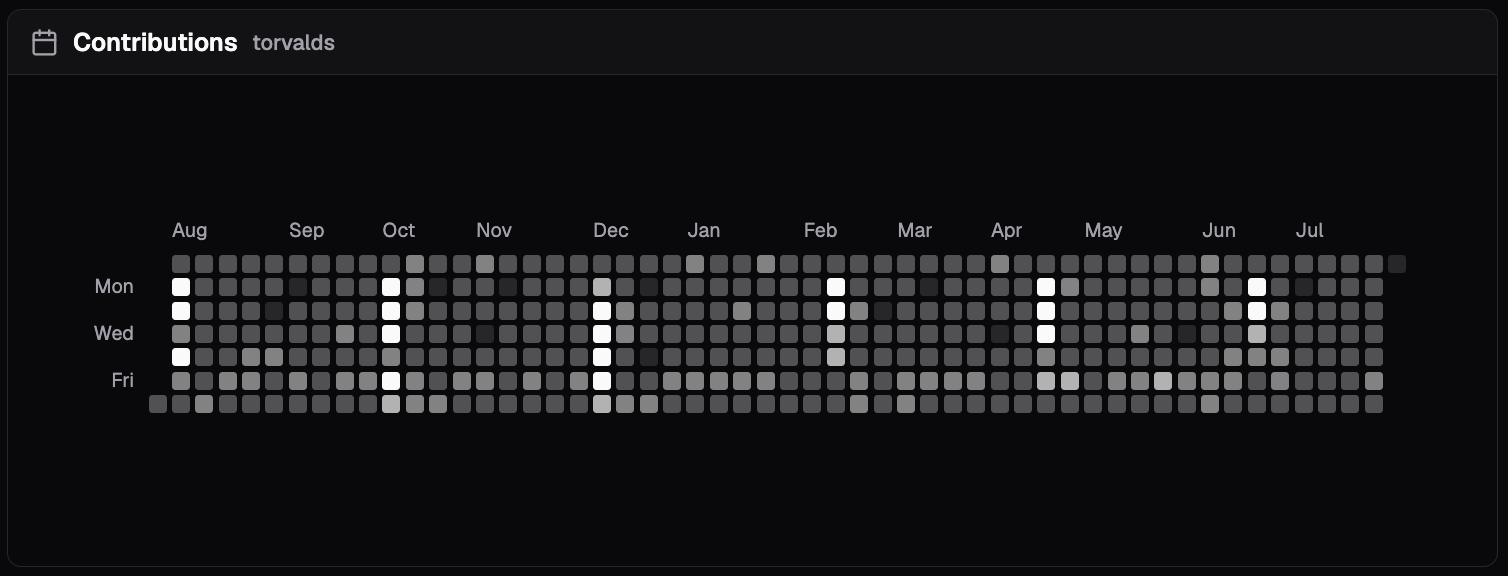

`Gitmap`

Display GitHub contribution heatmap (similar to GitHub's contribution graph).

Parameters:

Parameter	Type	Required	Default	Description
`user`	string	yes	-	GitHub username
`title`	string	no	"Contributions"	Custom widget title
`api`	string	no	"github"	API subscription ID
`endpoint`	string	no	"contributions"	API endpoint to call

Example:

- extension: github
  widget: Gitmap
  user: torvalds
  columns: 3
  rows: 1

System status

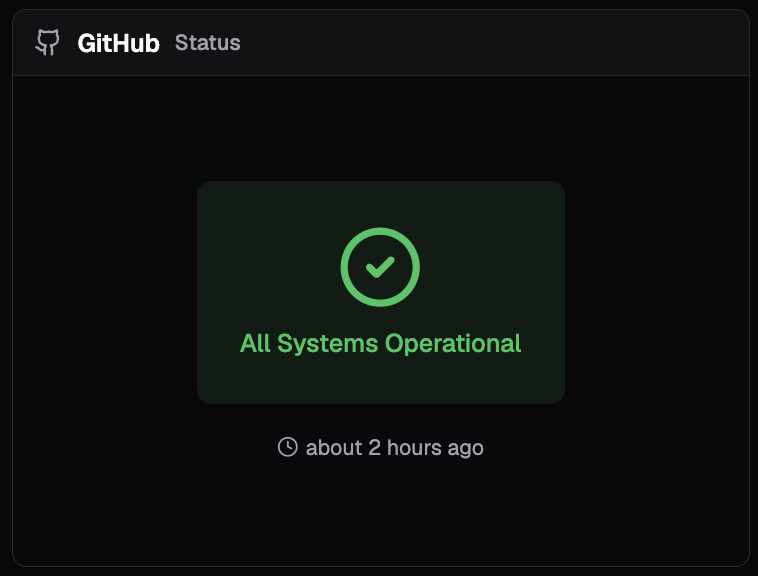

`Status`

Display GitHub's current system status.

Parameters:

Parameter	Type	Required	Default	Description
`title`	string	no	"GitHub"	Custom widget title
`api`	string	no	"github"	API subscription ID
`endpoint`	string	no	"status"	API endpoint to call

Example:

- extension: github
  widget: Status
  columns: 1
  rows: 1

API rate limits

GitHub API has rate limits that vary based on authentication:

Authentication	Rate Limit
No token	60 requests/hour
With token	5,000 requests/hour

Recommendations:

Always use a personal access token in production
Monitor rate limit usage in the Dashfy console panel
Consider caching strategies for high-frequency dashboards

Troubleshooting

"API rate limit exceeded"

Solution: Add a GitHub personal access token to your configuration.

"Resource not accessible by integration"

Solution: Ensure your token has the required scopes (e.g., repo for private repositories).

Traffic widgets showing errors

Solution: Traffic data requires push access to the repository. Ensure your token has the necessary permissions.

Contribution heatmap not loading

Solution: The Gitmap widget uses a third-party API (github-contributions-api) which may have its own rate limits.

Contributing

Contributions are welcome. For issues and pull requests related to the extension, use the dashfy/dashfy-ext-github repository. Framework contributions belong in dashfy/dashfy.

Community

Join the community on Dashfy's Discord server to discuss the project, ask questions, or get help.

Join the conversation on X (Twitter) and follow @dashfydev for updates and announcements.

License

This project is licensed under the AGPL-3.0 License - see the LICENSE file for details.

Name		Name	Last commit message	Last commit date
Latest commit History 31 Commits
.changeset		.changeset
.github		.github
.husky		.husky
preview		preview
src		src
.editorconfig		.editorconfig
.gitignore		.gitignore
CHANGELOG.md		CHANGELOG.md
LICENSE		LICENSE
README.md		README.md
commitlint.config.mjs		commitlint.config.mjs
eslint.config.mjs		eslint.config.mjs
lint-staged.config.mjs		lint-staged.config.mjs
package.json		package.json
pnpm-lock.yaml		pnpm-lock.yaml
prettier.config.mjs		prettier.config.mjs
tsconfig.json		tsconfig.json
tsup.config.ts		tsup.config.ts
vitest.config.ts		vitest.config.ts
vitest.setup.ts		vitest.setup.ts

Uh oh!

Uh oh!

Folders and files

Latest commit

History

Repository files navigation

@getdashfy/ext-github

Features

Installation

npm

pnpm

yarn

bun

Quick start

1. Server setup

2. Client setup

3. Dashboard configuration

GitHub API configuration

Authentication

Creating a personal access token

Configuration options

Environment variables

GitHub enterprise

API endpoints

Available widgets

Badges

RepoBadge

UserBadge

OrgBadge

Repository data

Branches

PullRequests

Charts & Analytics

CommitActivityLine

ContributorsStats

TrafficViewsHistogram

TrafficClonesHistogram

User data

Gitmap

System status

Status

API rate limits

Troubleshooting

"API rate limit exceeded"

"Resource not accessible by integration"

Traffic widgets showing errors

Contribution heatmap not loading

Contributing

Community

License

About

Topics

Resources

Stars

Watchers

Forks

Releases

Sponsor this project

Packages

Contributors

Languages

`@getdashfy/ext-github`

`npm`

`pnpm`

`yarn`

`bun`

`RepoBadge`

`UserBadge`

`OrgBadge`

`Branches`

`PullRequests`

`CommitActivityLine`

`ContributorsStats`

`TrafficViewsHistogram`

`TrafficClonesHistogram`

`Gitmap`

`Status`
